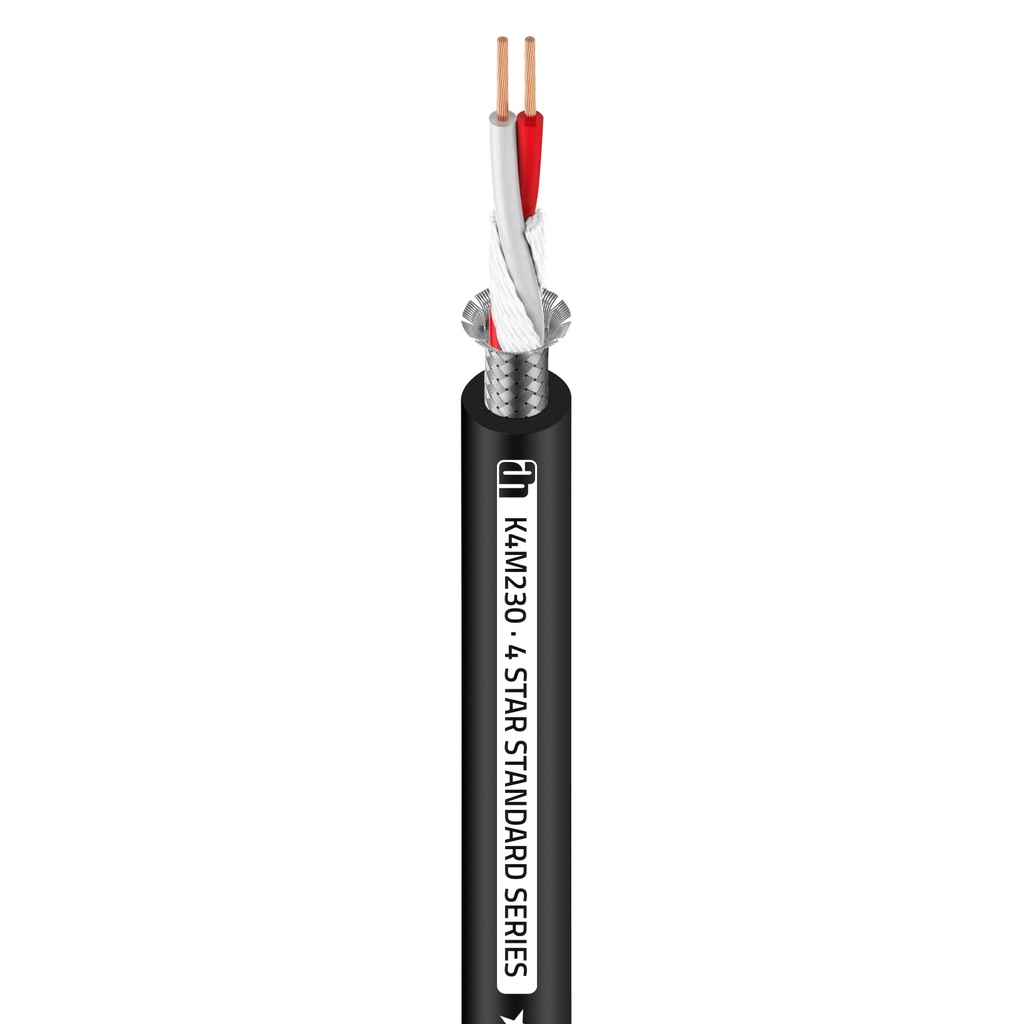

4 STAR M 230

<p>The 4 STAR M 230 is a professional microphone cable for the balanced transmission of low impedance signals. The cable consists of two twisted, especially fine-stranded OFC copper conductors (cross-section 0.30 mm²), which ensure efficient unbalance attenuation. The 1.5 mm thick PE insulation enables a very low capacitance. The tinned copper braided shield provides efficient protection against electromagnetic (EMI) and radio frequency interference (RFI) - for good, noise-free transmission behaviour. Thanks to the robust PVC jacket with high flexibility and abrasion resistance, the cable is suitable for live applications, studio and home recording.</p> <ul><li>4 Star "Standard" Series</li><li>Packaging unit: 100 m on drum</li><li>High transmission quality due to OFC inner conductor</li><li>Very low capacitance thanks to PE insulation</li><li>High flexibility, easy to reel</li><li>Our standard microphone cable with 2 x 0.30 mm² inner conductor</li></ul> <table><tr><td><strong>Product type</strong></td><td>Bulk Cable</td></tr><tr><td><strong>Type</strong></td><td>Microphone cable</td></tr><tr><td><strong>Color</strong></td><td>Black</td></tr><tr><td><strong>Overall diameter</strong></td><td>6.5 mm</td></tr><tr><td><strong>AWG</strong></td><td>22</td></tr><tr><td><strong>Center conductor cross section</strong></td><td>0.30 mm²</td></tr><tr><td><strong>Center conductor material</strong></td><td>OFC</td></tr><tr><td><strong>Center conductor construction</strong></td><td>38 x 0.10 mm</td></tr><tr><td><strong>Number of internal conductors</strong></td><td>2</td></tr><tr><td><strong>Shield material</strong></td><td>Copper, tin-plated</td></tr><tr><td><strong>Shield</strong></td><td>Tin-plated copper braided shield</td></tr><tr><td><strong>Shielding factor</strong></td><td>95 %</td></tr><tr><td><strong>Line resistance</strong></td><td>53 Ohm(s)</td></tr><tr><td><strong>Temperature range</strong></td><td>-20 - 70 °C</td></tr><tr><td><strong>Weight</strong></td><td>0,048 kg</td></tr></table>
