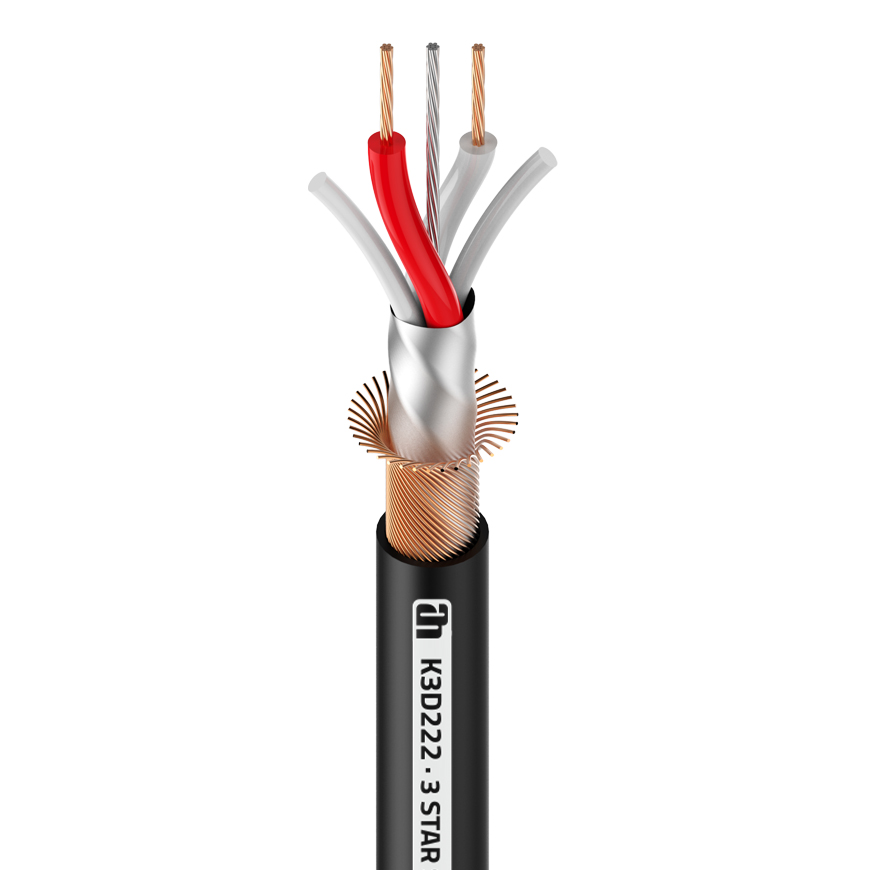

3 STAR D 222

<p>The 3 STAR D 222 is our absolute classic when it comes to transmitting DMX signals. If you are looking for a highly flexible cable with excellent transmission properties, this is the cable for you. It is well protected against external influences by its copper spiral shield and the aluminium foil with stranded wires. Thanks to its extremely thin diameter, it is very easy to drum and flexible, but at the same time it is also robust and well suited for tough road use.</p> <ul><li>DMX cable from our 3 Star Series</li><li>Packaging unit: 100 m on drum</li><li>Highly flexible, easy to drum</li><li>Copper spiral shielding of 80 x 0.10 mm with filler strand and aluminium foil</li><li>Very narrow diameter of only 5 mm</li></ul> <table><tr><td><strong>Product type</strong></td><td>Bulk Cable</td></tr><tr><td><strong>Type</strong></td><td>DMX & AES/EBU Cable</td></tr><tr><td><strong>Color</strong></td><td>Black</td></tr><tr><td><strong>Overall diameter</strong></td><td>5 mm</td></tr><tr><td><strong>AWG</strong></td><td>24</td></tr><tr><td><strong>Center conductor cross section</strong></td><td>0.22 mm²</td></tr><tr><td><strong>Center conductor material</strong></td><td>OFC</td></tr><tr><td><strong>Center conductor construction</strong></td><td>7 x 0.20 mm</td></tr><tr><td><strong>Number of internal conductors</strong></td><td>2</td></tr><tr><td><strong>Shield material</strong></td><td>copper</td></tr><tr><td><strong>Shield</strong></td><td>Spiral helix umbrella</td></tr><tr><td><strong>Line surge impedance</strong></td><td>120 Ohm(s)</td></tr><tr><td><strong>Line resistance</strong></td><td>85 Ohm(s)</td></tr><tr><td><strong>Capacitance</strong></td><td>45 pF/m</td></tr><tr><td><strong>Temperature range</strong></td><td>-20 - 70 °C</td></tr><tr><td><strong>Weight</strong></td><td>0,05 kg</td></tr></table>
