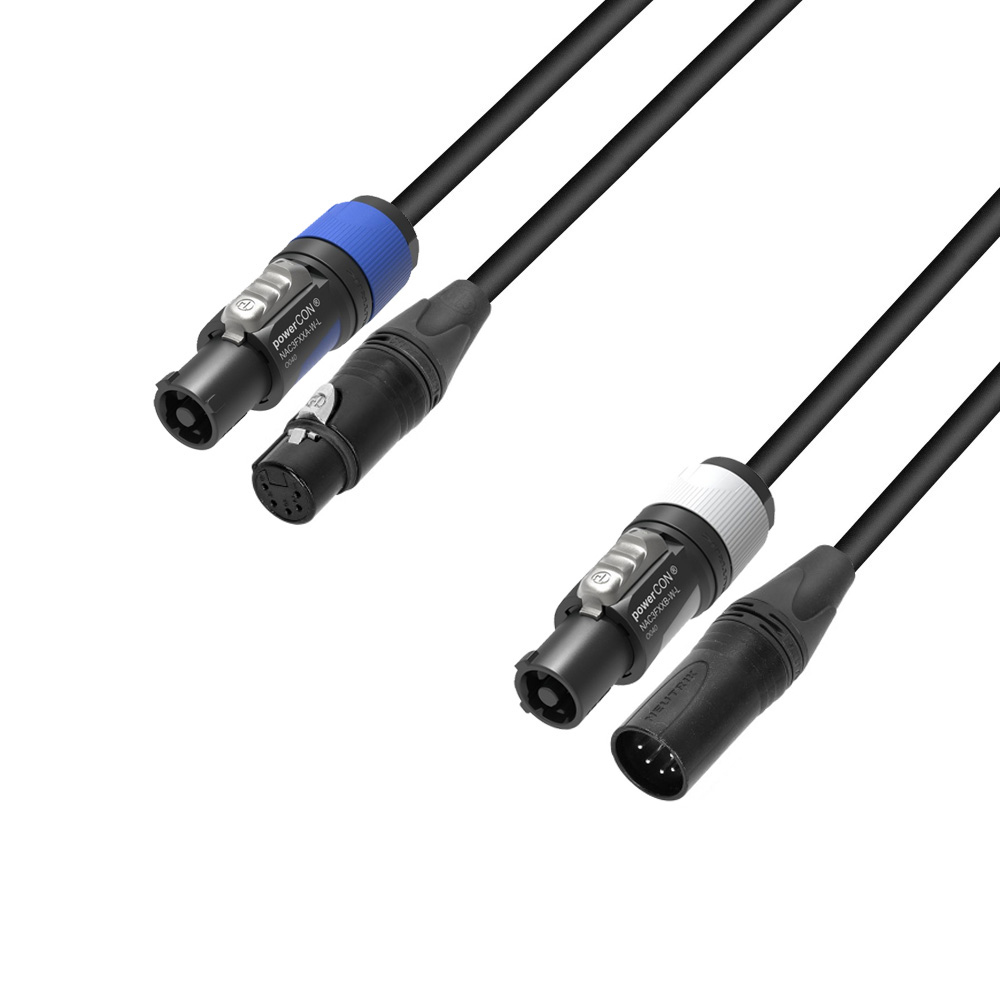

8101 PSDT5 0150 N

<ul><li>No more cable tangle thanks to only one cable for your devices</li><li>Conductor cross-section (mains cable): 3 x 2.5 mm²</li><li>Conductor cross-section (DMX): 2 x 0.22 mm² - Spliss length: 40 cm</li><li>Splice length: 40 cm</li><li>With original Neutrik connectors (5-pole DMX to powerCON)</li><li>For parallel power supply and DMX transmission</li><li>Shielding: 95%</li><li>Includes two loose, transparent shrink tubes for labelling the cable yourself</li></ul> <table><tr><td><strong>Product type</strong></td><td>Hybridkabel</td></tr><tr><td><strong>Type</strong></td><td>Mains/DMX cable</td></tr><tr><td><strong>Cable Length</strong></td><td>1.5 m</td></tr><tr><td><strong>Splice length</strong></td><td>40 cm</td></tr><tr><td><strong>Color</strong></td><td>Black</td></tr><tr><td><strong>Overall diameter</strong></td><td>17 mm</td></tr><tr><td><strong>Jacket material</strong></td><td>PVC</td></tr><tr><td><strong>Temperature range</strong></td><td>-20 - 70 °C</td></tr><tr><td><strong>Weight</strong></td><td>0,43 kg</td></tr></table><h4>Mains line</h4><table><tr><td><strong>Connector 1-A</strong></td><td>NAC3FCA-1</td></tr><tr><td><strong>Connector 2-A</strong></td><td>NAC3FCB-1</td></tr><tr><td><strong>Center conductor material</strong></td><td>bare copper</td></tr><tr><td><strong>Center conductor cross section</strong></td><td>2.5 mm²</td></tr><tr><td><strong>Number of internal conductors</strong></td><td>3</td></tr><tr><td><strong>Inner conductor construction</strong></td><td>96 x 0.10</td></tr><tr><td><strong>Diameter</strong></td><td>10 mm</td></tr><tr><td><strong>AWG</strong></td><td>14</td></tr></table><h4>Signal line</h4><table><tr><td><strong>Connector 1-B</strong></td><td>NC5FXX-BAG</td></tr><tr><td><strong>Connector 2-B</strong></td><td>NC5MXX-BAG</td></tr><tr><td><strong>Center conductor material 2</strong></td><td>bare copper</td></tr><tr><td><strong>Center conductor cross section 2</strong></td><td>0.22 mm²</td></tr><tr><td><strong>Number of inner conductors 2</strong></td><td>2</td></tr><tr><td><strong>Diameter 2</strong></td><td>5 mm</td></tr><tr><td><strong>AWG 2</strong></td><td>24</td></tr><tr><td><strong>Capacitance</strong></td><td>55 pF/m</td></tr><tr><td><strong>Conductor resistance</strong></td><td>85 ohm/km</td></tr><tr><td><strong>Surge Impedance</strong></td><td>120 ohm/km</td></tr></table>
